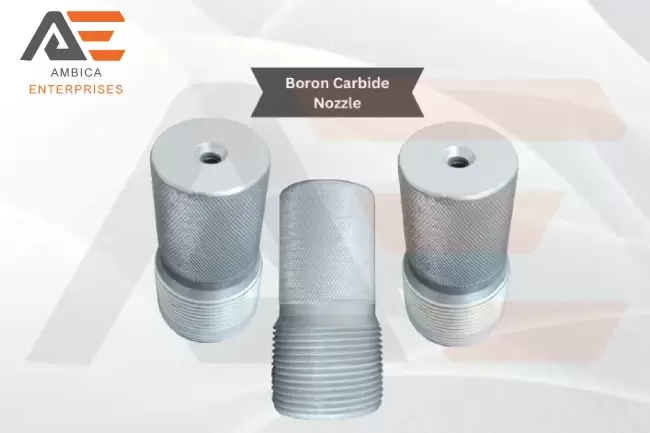

Boron Carbide Nozzle, a renowned ceramic material, is astounding with its remarkable attributes and exceptional hardness. This boron and carbon atom-composed chemical is among the most difficult substances known to exist. Its solid characteristics are enhanced by its high melting point, significant strength, and exceptional abrasion resistance. Boron carbide is an outstanding material for applications requiring high temperatures due to its durability and exceptional resistance to heat. In addition, it possesses chemical stability, resisting corrosion caused by a wide range of acids and alkalis. Sectors including abrasive blasting, military armor, nuclear activities, and the fabrication of specialized cutting and jewelry instruments all make use of these qualities.
Following cubic boron nitride and diamond, boron carbide is the third hardest substance. Boron carbide sand blasting nozzle has the most favorable "price-to-service life" ratio and exceptional operational characteristics. Boron carbide is a highly suitable option in situations involving extensive fracturing and the use of aggressive media, such as aluminum oxide or specific minerals. When subjected to hostile media bombardment, boron carbide nozzles exhibit a lifespan increase of 5-10 times compared to tungsten carbide nozzles, silicon carbide nozzles by 2-3 times, and iron or cast iron nozzles by up to 100 times.
Boron carbide is prevalent in sand blasting nozzles for a variety of reasons. To begin with, it is difficult, to number among the toughest materials known. Due to its remarkable hardness, the nozzle is impervious to the abrasive conditions of sand blasting, ensuring its longevity and sturdiness with a sand blasting nozzle holder. Second, boron carbide is exceedingly resistant to heat and chemicals, both of which are commonly used in abrasive blasting. This resistance guarantees that the nozzle's integrity and efficacy are maintained even in extreme conditions, adding to its appropriateness for sandblasting applications. Overall, boron carbide is an excellent material option for sand blasting nozzles because of its outstanding hardness and resistance to heat and chemicals, facilitating effective and long-lasting performance in abrasive blasting procedures.
Types and Sizes of Boron Carbide Nozzle
Many kinds of different Boron Carbide nozzles with the following characteristics make up our fundamental product range with lengths ranging from 20 to 220 mm and output diameters ranging from 4 to 15 mm:
- Many nozzle designs are available, such as venturi bore, conventional, straight bore, and lead-in nozzles.
- High-production venturi nozzles with a broad throat and standard entrance, threaded nozzles, flanged nozzles for nozzle carriers, and nozzles for direct tubing connections.
- Sand blasting nozzles for outdoor operations and shelters; nozzles covered with steel and aluminum covering.
- The 200 and 400-angled nozzles, fishtail nozzles that have a conical intake and a straight output, and blasting heads with four lateral outputs that work well for internal pipe blasting equipment are examples of common and specialized nozzles.
- specialized devices for internally blasting pipes with internal diameters between 75 and 300 mm and 200 to 900 mm.
In addition to the basic kinds and sizes, we also take inquiries for customized nozzles created based on the client's ideas. This enables us to create nozzles compatible with any sort of sand blasting machine presently available on the market.
Manufacturing Process of Boron Carbide Nozzle
The manufacturing of boron carbide nozzles is a delicate procedure requiring skill and accuracy. Usually, the process of making these nozzles starts with the precise selection and mixing of two raw materials: carbon and boron oxide, in the right amounts.
- Raw Material Preparation: To obtain the appropriate composition, the raw materials must first be crushed and combined. After that, this combined material is heated to high temperatures and put through sintering and consolidation processes, usually in electric furnaces.
- Shaping and Forming: Using sophisticated machining methods like milling, turning, or grinding, the post-sintering material is formed into the nozzle design. For the nozzle of the shot blasting machine to be durable and effective, the boron carbide material must be precisely shaped.
- Surface Finishing: The nozzles are treated to provide the necessary smoothness and dimensional correctness after the shaping process. To improve the nozzles' durability and performance, polishing or coating treatments may be necessary at this point.
- Quality Control: Throughout the production process, quality inspections are incorporated. Before a boron carbide nozzle is put on the market, it must pass rigorous examinations that include durability testing, material composition analysis, and dimensional checks.
Advantages of Boron Carbide Nozzle
Boron Carbide nozzles have the following benefits over a tungsten carbide nozzle due to the material's greater wear resistance, especially when severe abrasives are used:
- Slightly longer life expectancy, which can vary from 3 to 25 times greater according to the blast media applied.
- Reduced operational expenditures - roughly three times lower when the most aggressive media is applied.
- Employing Boron Carbide nozzles rather than Tungsten Carbide nozzles reduces the workman by roughly $800 for each 1000 blasting hours.
- Maintenance is made easier as there are fewer changeouts, resulting in reduced idle time for changeouts.
- Boron Carbide nozzles minimize operator fatigue since they are roughly 5 times lighter than WC nozzles.
Boron Carbide Nozzle Supplier in India
At Ambica Enterprises, we have a lot of happiness in becoming one of India's top suppliers of boron carbide nozzles. We provide an extensive selection of premium boron carbide nozzles with a dedication to quality, suited to various industrial applications. We have a wide range of boron carbide nozzles in stock, including different sizes, configurations, and types of nozzles. Every product is painstakingly created and assembled to guarantee excellent performance and durability. At our business, quality comes first. Our boron carbide nozzles meet and frequently surpass international requirements because we maintain strict quality control procedures. To provide our customers with outstanding goods, we put durability, effectiveness, and consistency first.
We are aware that each application is different. For this reason, we provide customization choices to meet the needs of individual clients. Our team of professionals offers thorough technical assistance, helping you choose the ideal boron carbide nozzles for your needs. Our activities rely heavily on reliability. We value prompt customer service and make sure deliveries are made on schedule. We aim for total client satisfaction, emphasizing stable stock levels and effective after-sales assistance. Our goal at Ambica Enterprises is to become your go-to source for surface preparation and finishing requirements. We are prepared to improve the efficacy and efficiency of your abrasive blasting operations with our steadfast dedication to quality, personalization, and customer service.
