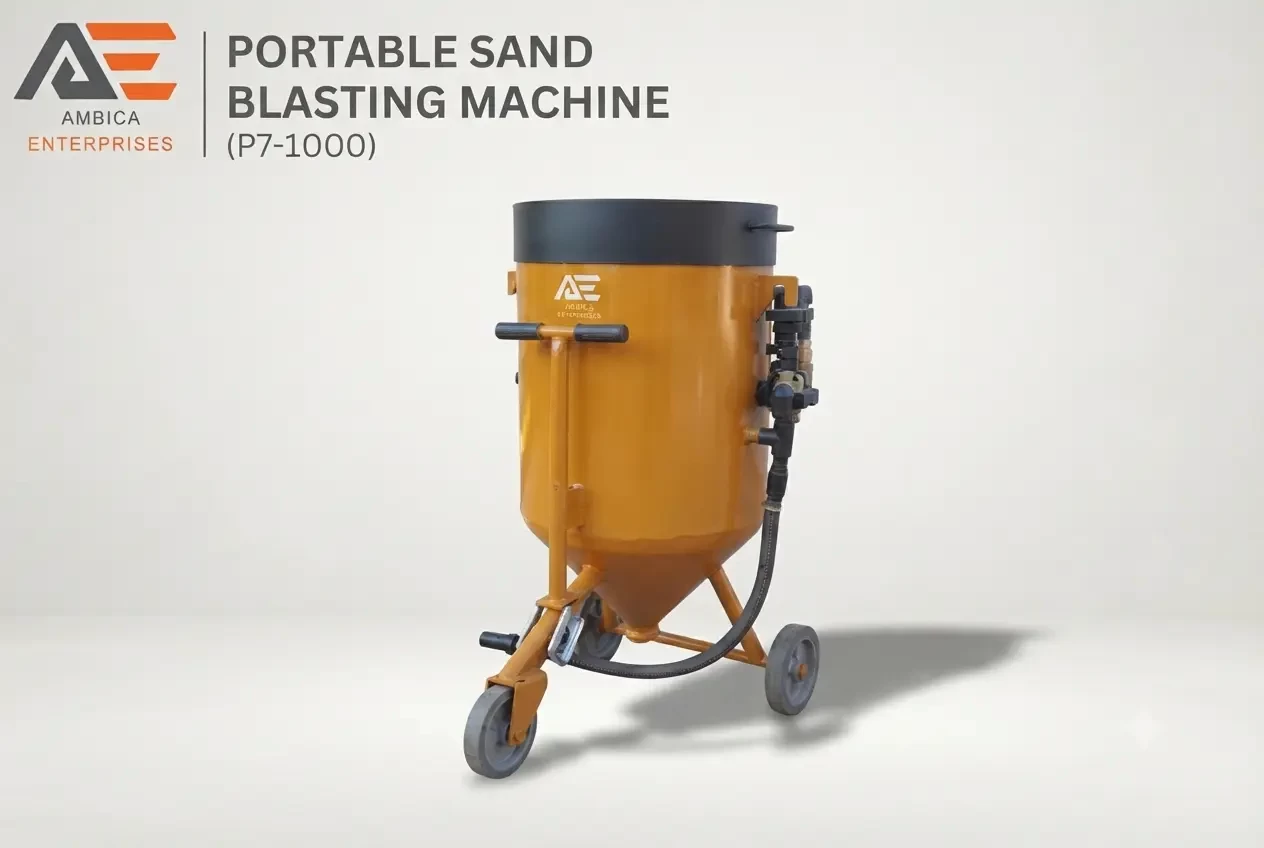

P7-1000 Portable Sand Blasting Machine – High-Capacity Abrasive Blasting System
The P7-1000 portable sand blasting machine is a high-capacity pressure blasting system designed for demanding industrial surface preparation, cleaning, rust removal, paint stripping, corrosion removal, deburring, and finishing applications. With its large abrasive storage capacity, this portable sand blasting machine is suitable for heavy-duty blasting operations where greater media capacity and continuous working are important.
The P7-1000 is designed as a portable sand blasting hopper, allowing operators to take the equipment directly to large, fixed, or difficult-to-transport workpieces. This makes it suitable for fabrication yards, construction projects, shipyards, foundries, workshops, maintenance facilities, infrastructure projects, and industrial coating applications.
Unlike stationary blasting equipment, a portable sand blaster provides greater flexibility because the machine can be positioned close to the work area. Compressed air carries the selected abrasive through the sand blasting hose and nozzle, producing a high-velocity abrasive stream for effective surface treatment.
What Is a P7-1000 Portable Sand Blasting Hopper?
The P7-1000 portable sand blasting hopper is a pressure-type abrasive blasting system designed for high-volume industrial applications. It stores abrasive media inside a pressure vessel and uses compressed air to transfer the abrasive through the blasting line.
The machine is also commonly described using terms such as portable sand blasting hopper, industrial sand blaster, abrasive blasting machine, portable grit blasting machine, pressure blasting pot, and portable abrasive blasting equipment.
Its large-capacity configuration makes it particularly suitable for applications where operators need to perform extended blasting operations without frequently stopping to refill the abrasive vessel.
The blasting process can be used for removing rust, old coatings, scale, dirt, corrosion, and other unwanted surface contaminants from suitable materials.
How Does a Portable Sand Blasting Hopper Work?
The operating principle of the P7-1000 is based on pressure abrasive blasting.
- Fill the Abrasive Tank: The selected abrasive media is loaded into the pressure vessel. The abrasive should be compatible with the machine and appropriate for the workpiece and required surface finish.
- Supply Compressed Air: An appropriately sized compressor supplies compressed air to the blasting system. Adequate airflow and pressure are essential for maintaining consistent abrasive velocity.
- Pressurize the Vessel: The pressure vessel is sealed and pressurized. Compressed air creates the force required to move the abrasive toward the abrasive-control system.
- Regulate Abrasive Flow: The abrasive flow is controlled before the abrasive-air mixture enters the blasting hose. Proper flow adjustment helps balance abrasive consumption and blasting productivity.
- Transfer Abrasive Through the Blast Hose: The abrasive travels through an abrasive blasting hose toward the sand blasting nozzle. A suitable hose should have appropriate abrasion resistance, flexibility, and pressure capability.
- Blast the Surface: The nozzle accelerates and directs the abrasive onto the workpiece. The impact removes contaminants and prepares the surface for further processing or coating.
Key Advantages of P7-1000 Portable Sand Blasting Hopper
- High-Capacity Abrasive Storage: The P7-1000 is designed for high-volume blasting applications where a larger abrasive storage capacity can help reduce frequent refilling.
- Portable Design: The mobile configuration allows the portable sand blasting hopper to be moved closer to large or stationary workpieces.
- Suitable for Heavy-Duty Applications: Its larger configuration makes it appropriate for demanding industrial surface preparation and cleaning projects.
- Efficient Abrasive Delivery: The pressure-blasting design provides a controlled path for transferring abrasive media from the vessel through the blast hose and nozzle.
- Flexible Application: The machine can be used with suitable abrasive media for cleaning, rust removal, coating removal, surface preparation, deburring, and other blasting requirements.
- Compatible Blasting Accessories: The machine can be combined with suitable sand blasting hose, abrasive blast hose, blast nozzle, sand blasting nozzle holder, coupling, deadman handle, remote control valve, and other blasting accessories according to the system configuration.
Abrasive Media for P7-1000
Selecting the correct abrasive is essential for achieving the desired cleaning performance and surface profile.
Depending on the application and machine configuration, commonly used abrasive media include:
- Steel shot
- Steel grit
- Garnet sand abrasive
- Aluminum oxide
- Copper slag
- Glass beads
- Silicon carbide
- Other compatible abrasive media
The abrasive should be selected according to the workpiece material, contamination level, required surface profile, blasting pressure, nozzle specification, and desired finish.
Although the equipment is commonly referred to as a sand blasting machine, abrasive blasting does not necessarily require conventional silica sand. Alternative abrasive media are often selected based on the application and applicable workplace-safety requirements.
Portable Sand Blasting Hopper Accessories
The performance of a blasting system depends not only on the pressure vessel but also on the accessories used with it. Common accessories include:
- Abrasive Blast Hose: The abrasive blast hose carries the abrasive-air mixture from the pressure vessel to the nozzle. It should be designed specifically for abrasive blasting applications.
- Blasting Nozzle: The nozzle controls and accelerates the abrasive stream. Tungsten carbide and boron carbide are commonly selected for demanding abrasive applications.
- Deadman Handle: A deadman handle provides operator control over blasting operation and is an important part of many remote-control blasting systems.
- Remote Control Valve: A remote-control valve can be used with compatible blasting systems to control the pressurization and depressurization process.
- Nozzle Holder and Couplings: Properly matched abrasive blasting hose couplings and nozzle holders help establish secure connections between the blasting hose and nozzle assembly.
How to Select the Right Portable Sand Blasting Machine
Before purchasing a portable sand blasting hopper, consider the following factors:
- Abrasive capacity: Choose a vessel capacity according to the size and duration of the blasting operation.
- Abrasive type: Select media suitable for the workpiece and desired surface finish.
- Air compressor: Ensure the compressor provides sufficient CFM and operating pressure.
- Nozzle size: Match the nozzle to the compressor and required blasting productivity.
- Blast hose: Select a suitable abrasion-resistant hose with compatible fittings.
- Control system: Consider whether manual or remote operation is appropriate.
- Application: Identify whether the machine will be used for fabrication, construction, maintenance, shipyard, foundry, or coating preparation.
- Safety equipment: Provide suitable blasting PPE, breathing-air protection, ventilation, and dust-control measures.
Portable Sand Blasting Hopper Price
The portable sand blasting hopper price depends on several factors, including machine capacity, pressure-vessel configuration, blasting accessories, nozzle selection, hose length, control system, quantity, and delivery location.
For a precise quotation, buyers should provide their required abrasive capacity, blasting application, operating pressure, air compressor specifications, nozzle size, hose requirements, and desired accessories.
A larger-capacity machine such as the P7-1000 is generally considered when the project requires higher abrasive storage and extended blasting operation.
Portable Sand Blasting Hopper Manufacturer in India
We are a portable sand blasting hopper manufacturer in India and a supplier worldwide, providing abrasive blasting equipment for industrial cleaning, surface preparation, coating preparation, rust removal, paint removal, fabrication, construction, and maintenance applications.
Our range of blasting equipment is designed to accommodate different project requirements, from compact portable machines to larger-capacity abrasive blasting systems.
We also supply related products including sand blasting machines, portable sand blasters, abrasive blasting hoses, sand blasting hoses, blasting nozzles, deadman controls, remote control valves, sand blasting machine spare parts, thermal spray guns, thermal spray wire, abrasive media, aluminum oxide, copper slag, steel shot, steel grit, etc.
Why Choose P7-1000 Portable Sand Blasting hopper?
The P7-1000 portable sand blasting hopper is an ideal solution for users requiring a high-capacity abrasive blasting machine system for demanding industrial applications. Its portable configuration allows the equipment to be positioned near large workpieces, while its pressure-blasting operation provides an effective method for transferring abrasive media through the blasting hose and nozzle.
It can be considered for rust removal, paint stripping, corrosion cleaning, steel surface preparation, fabrication, shipyard maintenance, construction, foundry cleaning, machinery maintenance, and industrial coating preparation.
For optimum performance, always match the portable sand blasting machine, abrasive media, compressor, blast hose, nozzle, operating pressure, and safety equipment to the specific application. Correct equipment selection and proper operating practices can help achieve consistent, efficient, and reliable abrasive blasting results.
