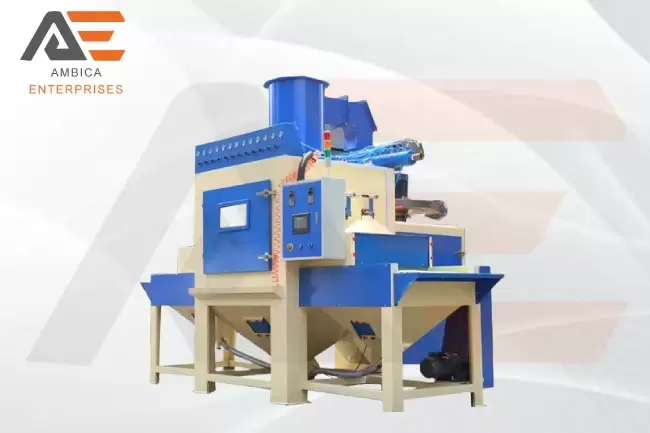

Automatic Sand Blasting Machine

Indicative price range

From ₹ 1.5Lakh - 21Lakh

Final pricing depends on configuration, dispatch location, and options — request a formal quote.

Machine Automatic Sand blasting Machine

Material Mild Steel

Grade Automatic

Compressed Air Source 5-7 Bar(Kg/M)

Power Supply 220V, 50Hz

Machine Type Cabinet

Cabinet Type Pressure / Suction / Wet Blasting Cabinet

Air Flow 0.8-3 M^3/Min

Nozzle Boron Carbide Sand Blasting Nozzle

Working Chamber Size L1200 * W1200 * H850 mm

Use Cleaning, Finishing

Automatic Sand Blasting Machine Application

Where & how Automatic Sand Blasting Machine is used

For Abrasive Blasting Machine Operation
To finish rough surface,
For descaling,
For the removal of residual salt and burrs from forging and casting parts,
For welded parts,
For heat-treated parts,
For stamping parts
For machined parts.
An Automatic Sand Blasting Machine is also used to blast glass pellets into polished objects to reinforce the surface.
An Automatic Sand Blaster machine is ideal for medium- to large-scale manufacturing of small and medium-sized items.
An automatic sand blasting machine is applied in the pretreatment process before spraying (thermal spray gun coating)and plating.

Description

Full product overview & narrative

Automatic Sand Blaster Machine

The automatic Sand Blasting Machine is flexible and simple to use, and it can handle a wide range of parts and geometries. The spindle assembly and tabletop unit can be easily loaded or unloaded by an overhead crane by swinging out via the front door. Inside the machine, parts with a diameter of up to 54" (1370 mm) can be loaded. It employs up to two venturi suction or direct pressure sand blasting nozzle, as well as a gun mover that may be set for a variety of motions. The entrance door also has hand apertures for a completely manual sand blasting machine and is fully interlocked for safety.

Automatic Sand Blasting Machine is a type of automated blasting that enables surface preparation and thermal spray coating applications undercover to limit the impacts of nature on prepared steel while having little or no environmental impact.

Several conveyor systems are available to transfer your items through the blasting area with maximum efficiency and blast stream exposure, on top and bottom surfaces if necessary.

The blasting area can be supplied with a fixed Sand blasting nozzle, oscillating nozzles on a vertical/horizontal axis, mounted on a rotating head, or precisely operated by a robotic arm, depending on the shape and dimensions of the parts.

Sand Blasting Machine is the technique of propelling small angular or spherical particles at a part using compressed air, mechanical high-speed spinning wheels, or water pumps. The blast media type, shape, size, density, and hardness, as well as media acceleration and volume, together with blasting distance from the workpiece, angle of impact, and time cycles, all play essential roles in blast process capabilities.

The Automatic sand blasting equipment is designed to distribute, reclaim, and hold the abrasive media, as well as to contain the part to be blasted and collect the blasting dust. Parts can be processed separately as a batch operation or through the automatic sand blasting machine system.

Automatic Sand Blasting Machine Features

The Automatic Sand Blasting Machine has a novel design, simple and reliable structure, convenient operation, good processing efficiency, and low energy consumption.
The Automatic sand blaster machine is equipped with a separator, a separator is to purify the used abrasive from contaminants, so as to greatly reduce the abrasive consumption.
The electrical components of the machine are made of high-quality world famous brand parts, which are safe and reliable and have a long service life.
